NJWxNet Sensor Information

Apogee PYR-P Pyranometer

This sensor is calibrated to measure total shortwave radiation. The evaporation of water from soil and the transpiration of water from plant leaves are partly determined by the intensity of shortwave radiation. An ideal pyranometer measures the entire solar spectrum, 280 to 2800 nm. However, about 90% of sunlight energy is between 300 to 1100 nm. Models PYR-P and PYR-S are calibrated to estimate all of the shortwave energy from sunlight. Apogee pyranometers are calibrated under sunlight over a multiple day period to a heated and ventilated Kipp & Zonen model CM21 precision reference radiometer.
Observation MethodSilicon-Cell Pyranometer
Min Measurement Range0.0
Max Measurement Range350.0
Accuracy0.200
More Information

Apogee SP-110 Pyranometer

The SP-110 uses a silicon photovoltaic detector mounted in a cosine-corrected head to provide solar radiation measurements for solar, agricultural, meteorological, and hydrological applications. Calibrated against a Kipp & Zonen CM21 thermopile pyranometer, the SP-110 accurately measures sun plus sky radiation for the spectral range of 360 to 1120 nm. The standard output is 0.2 mV per W/m², which provides a signal of 200 mV in full sunlight (1000 W/m²).
Observation MethodSilicon-Cell Pyranometer
Min Measurement Range0.0
Max Measurement Range350.0
Accuracy0.200
More Information

Kipp And Zonen CMP3 Pyranometer

The CMP 3 pyranometer is an instrument for measuring the solar irradiance. The thermopile sensor construction measures the solar energy that is received from the total solar spectrum and the whole hemisphere (180 degrees field of view). The CMP 3 pyranometer is designed for continuous indoor and outdoor use. It is also intended for shortwave global solar radiation measurements in the spectral range from 300 to 2800 nm. The thermopile detector measures irradiance up to 2000 W/m² with response time < 18 seconds and typical sensitivity 10 μV/W/m² that varies less than 5 % from -10 ℃ to +40 ℃. Operating temperature range is -40 ℃ to +80 ℃ and the stability is better than 1 % per year. This Pyranometer does not require any power, it supplies a low voltage of 0-20mV in relation to the amount of incoming radiation.
Observation MethodThermopile Sensor
Min Measurement Range0.0
Max Measurement Range2000.0
Accuracyn/a
More Information

LiCor, Inc LI200X Pyranometer

The LI200X is a pyranometer that monitors sun plus sky radiation. It connects directly to our dataloggers, and is used extensively in solar, agricultural, and meteorological applications.
Observation MethodSilicon Photovoltaic Detector
Min Measurement Range0.0
Max Measurement Range3000.0
AccuracyTypical ± 3%; Maximum ± 5%
More Information

Met One 385 Rain Gauge

The 385 is an electrically heated rain gauge that provides year-round measurement of rain or snow. It is a tipping-bucket rain gauge widely used in environmental monitoring applications. The 385 funnels precipitation into a bucket mechanism that tips and actuates a switch. The momentary switch closure is counted by the pulse-counting circuitry of any of the Campbell Scientific dataloggers. The gauge is heated so that frozen precipitation melts and is measured right away as a liquid.
Observation MethodTipping Bucket
Min Measurement Range0.0
Max Measurement Rangen/a
Accuracy± 0.5% for <0.5"/hr; ± 2.0% for 3.0"/hr
More Information

R.M. Young Company 05103 Wind Monitor

The Wind Monitor is a high performance wind sensor. Rugged, corrosion-resistant construction makes it ideal for a wide range of wind measuring applications. The wind speed sensor is a four blade helicoid propeller. Propeller rotation produces an AC sine wave voltage signal. The wind direction sensor is a rugged yet lightweight vane. Vane angle is sensed by a precision potentiometer. Constructed of UV stabilized plastic with stainless steel and anodized aluminum fittings, the sensor mounts on standard 1 inch pipe. Model 05103V offers calibrated 0-5 VDC outputs, Model 05103L provides a calibrated 4-20 mA current signal for each channel. L-xx denotes the length of the cable.
Observation MethodFour Blade Helicoid Propeller
Min Measurement Range0.0
Max Measurement Range100.0
Accuracy± 0.3 m/s (or 1% of reading) and ± 3°
More Information

R.M. Young Company 05106 Wind Monitor

This Wind Monitor is an accurate and reliable wind sensor specifically designed for the rigors of a marine environment. This wind speed sensor is a four blade helicoid propeller. Unique transducer produces a pulse signal without electrical contacts or slip rings. The wind direction sensor is a durable molded vane. Vane angle is sensed by a precision potentiometer housed in a sealed chamber. All materials are carefully selected for corrosion resistance and maximum durability in the harsh marine environment. Stainless steel bearings are used throughout. Special waterproof lubricant further enhances reliability. The instrument mounts on standard 1 inch pipe. Separate signal conditioning circuits are available to provide voltage or current signals when needed. Each is supplied in a weatherproof junction box with mounting hardware.
Observation MethodFour Blade Helicoid Propeller
Min Measurement Range0.0
Max Measurement Range50.0
Accuracy± 0.2 m/s; ± 1.4°
More Information

R.M. Young Company 03001 Wind Monitor

The 03001 measures wind speed and direction. It interfaces directly with Campbell dataloggers; no signal conditioning required.
Observation Method3-Cup Anemometer
Min Measurement Range0.0
Max Measurement Range50.0
Accuracy± 0.5 m/s; ± 5°
More Information

R.M. Young Company 03002 Wind Monitor

The 03002 measures wind speed and direction with a 3-cup anemometer and a wind vane mounted on a small crossarm. It interfaces directly with Campbell dataloggers; no signal conditioning is required.
Observation Method3-Cup Anemometer
Min Measurement Range0.0
Max Measurement Range50.0
Accuracy± 0.5 m/s; ± 5°
More Information

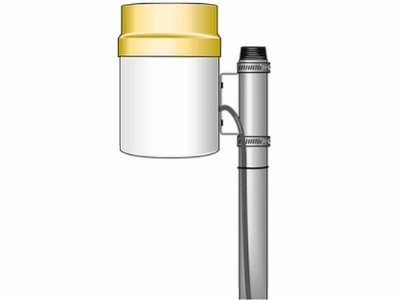

Texas Electronics TE-525 Rain Gauge

The TE525 tipping bucket rain gage has a 6-in. orifice and measures rainfall in 0.01-in. increments. It is compatible with all Campbell Scientific dataloggers, and is widely used in environmental monitoring applications.
Observation MethodTipping Bucket
Min Measurement Range0.0
Max Measurement Rangen/a
Accuracy± 1% at rates up to 1 in/hr
More Information

Texas Electronics TR-525I Rain Gauge

The Texas Electronics, Inc. TR-525I Rainfall Sensor is a remote tipping bucket style rain gauge that measures the amount of liquid precipitation. The TR-525I rain gauge is a freestanding receptacle for measuring precipitation. It contains an open top, which allows rainfall to fall into the upper portion, which is called the collector. Collected water is funneled to a mechanical device (tipping bucket), which incrementally measures the rainfall accumulation and causes a momentary closure of a switch. As water is collected, the tipping bucket fills to the point where it tips over. This action empties the bucket in preparation for additional measurement. Water discharged by the tipping bucket passes out of the rain gauge with no need for emptying. The TR-525I was designed to meet the need for a rugged and reliable rain gauge tipping bucket with high accuracy and low cost.
Observation MethodTipping Bucket
Min Measurement Range0.0
Max Measurement Rangen/a
Accuracy1.0% up to 2''/hr
More Information

Texas Electronics TR-525I-HT Rain Gauge

The Texas Electronics, Inc. TR-525I Rainfall Sensor is a remote tipping bucket style rain gauge that measures the amount of liquid precipitation. The TR-525I rain gauge is a freestanding receptacle for measuring precipitation. It contains an open top, which allows rainfall to fall into the upper portion, which is called the collector. Collected water is funneled to a mechanical device (tipping bucket), which incrementally measures the rainfall accumulation and causes a momentary closure of a switch. As water is collected, the tipping bucket fills to the point where it tips over. This action empties the bucket in preparation for additional measurement. Water discharged by the tipping bucket passes out of the rain gauge with no need for emptying. The TR-525I was designed to meet the need for a rugged and reliable rain gauge tipping bucket with high accuracy and low cost.
Observation MethodTipping Bucket
Min Measurement Range0.0
Max Measurement Rangen/a
Accuracy1.0% up to 2''/hr
More Information

Texas Electronics TR-525USW Rain Gauge

The Texas Electronics, Inc. TR-525USW Rainfall Sensor is a remote tipping bucket style rain gauge that measures the amount of liquid precipitation. This sensor is specifically designed to meet the National Weather Service's requirements for rainfall measurement The TR-525USW rain gauge is a freestanding receptacle for measuring precipitation. It contains an open top, which allows rainfall to fall into the upper portion, which is called the collector. Collected water is funneled to a mechanical device (tipping bucket), which incrementally measures the rainfall accumulation and causes a momentary closure of a switch. As water is collected, the tipping bucket fills to the point where it tips over. This action empties the bucket in preparation for additional measurement. Water discharged by the tipping bucket passes out of the rain gauge with no need for emptying.
Observation MethodTipping Bucket
Min Measurement Range0.0
Max Measurement Rangen/a
Accuracy1.0% up to 2"/hr
More Information

Texas Electronics TR-525USW-R Rain Gauge

The Texas Electronics, Inc. TR-525USW Rainfall Sensor is a remote tipping bucket style rain gauge that measures the amount of liquid precipitation. This sensor is specifically designed to meet the National Weather Service's requirements for rainfall measurement The TR-525USW rain gauge is a freestanding receptacle for measuring precipitation. It contains an open top, which allows rainfall to fall into the upper portion, which is called the collector. Collected water is funneled to a mechanical device (tipping bucket), which incrementally measures the rainfall accumulation and causes a momentary closure of a switch. As water is collected, the tipping bucket fills to the point where it tips over. This action empties the bucket in preparation for additional measurement. Water discharged by the tipping bucket passes out of the rain gauge with no need for emptying.
Observation MethodTipping Bucket
Min Measurement Range0.0
Max Measurement Rangen/a
Accuracy1.0% up to 2''/hr
More Information

Texas Electronics TR-525USW-R2 Rain Gauge

The Texas Electronics, Inc. TR-525USW Rainfall Sensor is a remote tipping bucket style rain gauge that measures the amount of liquid precipitation. This sensor is specifically designed to meet the National Weather Service's requirements for rainfall measurement The TR-525USW rain gauge is a freestanding receptacle for measuring precipitation. It contains an open top, which allows rainfall to fall into the upper portion, which is called the collector. Collected water is funneled to a mechanical device (tipping bucket), which incrementally measures the rainfall accumulation and causes a momentary closure of a switch. As water is collected, the tipping bucket fills to the point where it tips over. This action empties the bucket in preparation for additional measurement. Water discharged by the tipping bucket passes out of the rain gauge with no need for emptying.
Observation MethodTipping Bucket
Min Measurement Range0.0
Max Measurement Rangen/a
Accuracy1.0% up to 2"/hr
More Information

Vaisala HMP35C Thermometer & Hygrometer

The HMP35C Temperature and RH probe replaced the HMP35A; the HMP35C was eventually replaced with the HMP45C-L. The HMP35C was Vaisala's production line model that had a Platinum Resistance Thermometer (PRT) for measuring temperature and a HUMICAP-H sensor for measuring relative humidity. It contained a switching circuit to conserve system power.
Observation MethodPlatinum Resistance Thermometer/HUMICAP-H Sensor
Min Measurement Range-35.0
Max Measurement Range55.0
AccuracyTemp: ± 0.2–0.4 ℃; Relative Humidity: ± 2%–3%
More Information

Vaisala HMP45C Thermometer & Hygrometer

The HMP45C is a rugged, accurate temperature and relative humidity probe. It measures relative humidity over the range of 0 to 100% RH and temperature over the range of -40 ℃ to +60 ℃. This probe is suitable for long-term, unattended monitoring, and is compatible with all Campbell Scientific dataloggers.
Observation MethodPlatinum Resistance Thermometer/HUMICAP capacitive polymer H Chip
Min Measurement Range-39.0
Max Measurement Range60.0
AccuracyRH: ± 2% (0–90%); ± 3% (90–100%) ; Temp: ± 0.2–0.4 ℃ for -20 ℃–40 ℃
More Information

Vaisala PTB101B Barometer

The CS105 Barometer uses Vaisala's silicon capacitive sensor (PTB101B) to measure barometric pressure over a 600 to 1060 millibar range. The CS105 outputs a linear signal of 0 to 2.5 Vdc allowing it to be directly connected to Campbell Scientific dataloggers. An integral circuit switches 12 volts from the datalogger to the barometer only during measurement, thereby reducing power requirements. Sensor warm-up and measurement time is one second minimum.
Observation MethodSilicon Capacitive Pressure Sensor
Min Measurement Range600.0
Max Measurement Range1060.0
Accuracy± 2.0 mb (-20 to +45 ℃)
More Information

Campbell Scientific 107 Soil Thermometer

The 107 is a rugged, accurate probe that measures temperature of air, soil, or water from -35 ℃ to +50 ℃. It easily interfaces with most Campbell Scientific dataloggers and can be used in a variety of applications.
Observation MethodThermistor Probe
Min Measurement Range-35.0
Max Measurement Range50.0
Accuracy± 0.4 ℃ (-24 ℃–48 ℃) ± 0.9 for (-35 ℃–50 ℃)
More Information

Campbell Scientific CS616 Soil Hygrometer

The CS616 measures the volumetric water content from 0% to saturation. The probe outputs a megahertz oscillation frequency, which is scaled down and easily read by a Campbell Scientific datalogger.
Observation MethodStainless Steel Probe Rod Sensors
Min Measurement Range0.0
Max Measurement Range100.0
Accuracy± 2.5% Volumetric Water Content
More Information

Peet Brothers 2000 Ultimeter

n/a
Observation MethodAbsolute Pressure Transducer
Min Measurement Range931.3
Max Measurement Range1067.0
Accuracy± 1.7 mb (at room temperature)
More Information

Peet Brothers 2100 Ultimeter

The Ultimeter 2100 has platinum-tone housing with blue display backlighting. To improve the user interface still further, an illuminated keypad provides exceptional visibility in darkness or low-light conditions. The Ultimeter 2100 utilizes Peet Bros.' weather sensor technology, including an all-digital wind sensor and anemometer, featuring exceptional response in all wind conditions, including very low wind speeds. It also features direct serial data output including WeatherText©, and is APRS-ready. The Ultimeter 2100 includes Barometric Pressure and numeric pressure change over a 3 hour period, wind speed, wind direction, outdoor temperature, indoor temperature, wind chill, time, date, outdoor humidity, dew point, heat index; indoor humidity, and rainfall. The Ultimeter 2100 features not one, but two 7-mode serial ports that can accept remote commands, making it easy to communicate with external devices to transmit the data or collect it remotely by phone, modem, or radio link. The 2100 comes "APRS-Ready," requiring only direct cable connection to a TNC. The system has an exclusive 9- Bank memory system for highest and lowest readings: today's, each of the previous 7 days', and long-term.
Observation MethodAbsolute Pressure Transducer
Min Measurement Range931.0
Max Measurement Range1067.0
Accuracy± 1.7 mb (at room temperature)
More Information

Peet Brothers UNKNOWN Ultimeter

n/a
Observation Methodn/a
Min Measurement Rangen/a
Max Measurement Rangen/a
Accuracyn/a
More Information

Campbell Scientific SR50A Snow Sensor

The SR50A is a rugged acoustic sensor for measuring the distance from the sensor to a target. It is typically used to measure snow or water depth, but is well-suited for other uses, as well. This sensor is compatible with most Campbell Scientific dataloggers. The "-L" on a product model indicates that the cable length is specified at the time of order.
Observation MethodUltrasonic Pulse
Min Measurement Range0.5
Max Measurement Range10.0
Accuracy± 1 cm or 0.4% of the distance to target (whichever is greatest)
More Information

Campbell Scientific SR50 Snow Sensor

The SR50 measures elapsed time between emission and return of an ultrasonic pulse. An independent air temperature measurement is required. The SR50 output includes SDI-12, pulse train, or serial ASCII. Output options are configured with internal jumpers.
Observation MethodUltrasonic Pulse
Min Measurement Range1.6
Max Measurement Range32.8
Accuracy± 0.4" of 0.4% of distance to target (whichever is greatest)
More Information

Peet Brothers WSF-10072 Thermometer & Hygrometer

Factory-calibrated replacement circuit assembly, including humidity and temperature sensors. Select housing style (regular, or for solar-shielded sensor). Simple installation.
Observation MethodCapacitative RH Sensor & Precision aged Thermistor
Min Measurement Range66.0
Max Measurement Range-48.0
Accuracyn/a
More Information

Peet Brothers OTS Thermometer

Standard Outdoor Temperature Sensor, included with all ULTIMETER Weather Stations. A precision aged metal-oxide thermistor is used to measure temperature. As the temperature increases, its electrical resistance decreases, changing a signal voltage that is first converted to digital form, then sent to the microprocessor.
Observation MethodPrecision aged metal-oxide thermistor
Min Measurement Range-48.0
Max Measurement Range65.0
Accuracyn/a
More Information

Peet Brothers AWVS Wind Monitor

The ULTIMETER Anemometer/Wind Vane ("wind sensor") is a patented, uniquely all-digital design containing two magnetic switches. Unlike conventional wind sensors, the ULTIMETER Anemometer's patented digital design has no potentiometer or other friction contacts to wear out. It features bearings that are virtually corrosion proof, with self-lubricating Delrin© races and surgical steel balls. The precision-molded housing of UV-resistant Lexan© will resist the harshest elements for many years.
Observation Method3-Cup Anemometer
Min Measurement Range2.0
Max Measurement Range175.0
Accuracy± 2 mph or ± 5% (whichever is greatest)
More Information

Peet Brothers AWVP Wind Monitor

The ULTIMETER© PRO Anemometer features exceptional response in all wind conditions, including very low wind speeds (typical starting threshold 1.5 mph! ). The ULTIMETER© PRO Anemometer/Wind Vane ("wind sensor") is a patented, uniquely all-digital design containing two magnetic switches. Unlike conventional wind sensors, the ULTIMETER© PRO Anemometer's patented digital design has no potentiometer or other friction contacts to wear out. It features bearings that are virtually corrosion proof, with self-lubricating Delrin© races and surgical steel balls. The precision-molded housing of UV-resistant Lexan© will resist the harshest elements for many years.
Observation Method3-Cup Anemometer
Min Measurement Range0.2
Max Measurement Range160.0
Accuracy± 2 mph or ± 5% (whichever is greatest)
More Information

Campbell Scientific CS650 Soil Hygrometer & Thermometer

The CS650 is a multiparameter smart sensor that uses innovative techniques to monitor soil volumetric water content, bulk electrical conductivity, and temperature. The CS650 measures propagation time, signal attenuation, and temperature. Dielectric permittivity, volumetric water content, and bulk electrical conductivity are then derived from these raw values.
Observation MethodStainless Steel Probe Rod Sensors
Min Measurement Range-10.0
Max Measurement Range70.0
Accuracy± 3% Volumetric Water Content, ± 0.1 ℃ (0 ℃–40 ℃) ± 0.5 ℃ (full temperature range)
More Information

Rotronic HC2S3 Thermometer & Hygrometer

The HC2S3 is a rugged, accurate temperature and humidity probe that is ideal for long-term, unattended applications. The probe uses an advanced capacitive sensor to measure relative humidity. The probe includes a filter to protect the sensor from dust and particles, for superior performance and reliability.
Observation Method100 Ω PRT for temperature/Rotronic's IN1 capacitive sensor for RH
Min Measurement Range-50.0
Max Measurement Range100.0
AccuracyRH: ± 0.8% at 23 ℃; Temp: ± 0.1 ℃ at 23 ℃
More Information

Vaisala PTB110 Barometer

The CS106, manufactured by Vaisala (PTB110), measures barometric pressure for the range of 500 to 1100 mb. This range equates to from below sea level (as in a mine) to over 15,000 feet above sea level. Designed for use in environmental applications, the CS106 is compatible with all Campbell Scientific dataloggers.
Observation MethodSilicon Capacitive Pressure Sensor
Min Measurement Range500.0
Max Measurement Range1100.0
Accuracy± 1.0 mb (-20 ℃ to +45 ℃)
More Information

Campbell Scientific EE181 Thermometer & Hygrometer

The EE181 is a rugged, accurate air temperature and relative humidity (RH) probe that is ideal for long-term, unattended applications. It includes a proprietary coating on the RH element that increases the life of the element and protects it from dirt, dust, salt, or other contaminants. A 1000 Ω PRT measures air temperature for the -40 ± to +60 ± range.
Observation Method1000 Ω Platinum Resistance Thermometer/Capacitance RH probe
Min Measurement Range-40.0
Max Measurement Range60.0
Accuracy± (1.3 + 0.003 ⋅ RH reading) % RH at -15 ℃ to 40 ℃; Temp: ± 0.2 ℃ at 23 ℃
More Information

Setra Model 278 Barometer

Setra's Model 278 is the ideal solution for measuring barometric pressure for remote environmental applications. The 278 is designed using the "SETRACERAM" ceramic sensor, enabling it to meet stringent accuracy requirements over wide operating temperatures in remote applications. The small footprint and removable terminal block on the 278 makes installation fast and easy. The 278 is ideal for solar powered applications because of its low power consumption and sleep mode feature. Under normal operation, this feature minimizes current draw when readings are not being taken.

The 278 utilizes a variable capacitance sensor that is made using ceramic material fused together with glass and gold to form the "SETRACERAM" pressure element. This stable material and design offers class leading thermal performance and low hysteresis, allowing it to be integrated into demanding installations. The ceramic sensor enables improved performance compared to other stainless steel sensors, enabling the 278 to give accurate measurements and better test results.
Observation MethodCeramic variable capacitance pressure transducer
Min Measurement Range500.0
Max Measurement Range1100.0
Accuracy± 0.6 mb (0 to +40 ℃)
More Information

Campbell Scientific 034B-L Wind Monitor

The 034B monitors wind speed using a three-cup anemometer that contains a sealed magnetic reed switch. Rotation of the cup wheel produces a pulse that is directly proportional to wind speed. The frequency of the pulse is measured by the data logger pulse count channel, then converted to engineering units (mph, m/s, knots). Wind direction is sensed with a potentiometer. With the precision excitation voltage from the data logger applied to the potentiometer element, the output signal is an analog voltage that is directly proportional to the azimuth of the wind direction.
Observation Method3-Cup Anemometer
Min Measurement Range0.0
Max Measurement Range75.0
Accuracy± 0.1 m/s @ < 10.14 m/s; ± 4°
More Information
